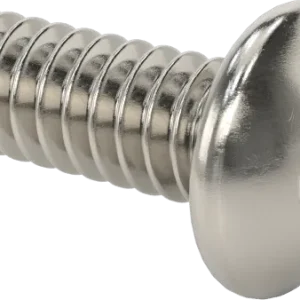

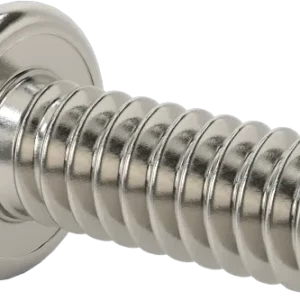

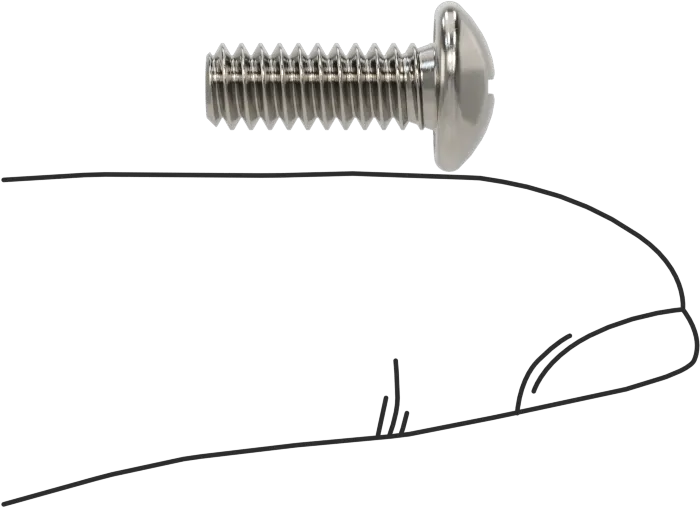

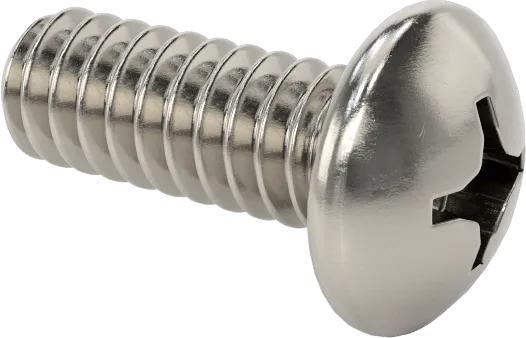

316 Stainless Steel Pan Head Phillips Screw

Technical specifications

15 product details

SKU 90116A323-117
Pack quantity 100 pieces
Price per piece $0.10 / piece
Availability In stock
Categories ,
System of Measurement Inch
Length 1/2" (0.500)
Thread Size UNF
Thread Pitch 10-24
Threading Fully Threaded
Head Dia 0.373"
Head height 0.133"
H.Drive Size Phillips
Tensile(PCI) 70.000
Specifications Met ASME B18.6.3

These stainless steel pan head Phillips screws won’t rust or corrode when exposed to moisture and chemicals. They have a moderate height and width profile, offering a middle ground between narrower button heads and wider truss heads. The Phillips drive easily aligns with drivers and withstands more torque than slotted drives, but drivers slip when you apply too much force.

Length is measured from under the head.

Highly CorrosionResistant 316 Stainless SteelSuperior to 18-8 stainless steel, these screws won’t degrade when exposed to harsh weather, salt water, and most chemicals.
